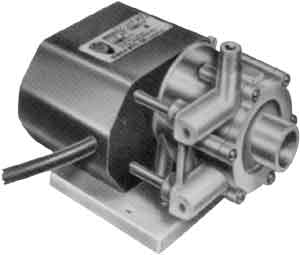

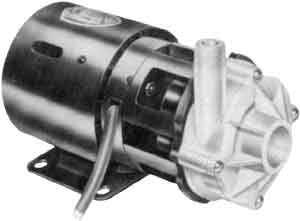

March Magnetic
Drive Chemical Pumps utilize an in-
novative dual magnet concept to drive the pump
impeller. This design eliminates wear and
maintenance problems normally associated with
mechanical and other shaft seals. In addition, the
potential for product contamination and leakage no
longer exist. The pumps are available in various
capacities up to 210 GPM and heads up to 170 feet.

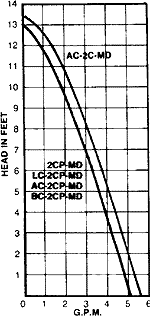

See the table below:
• Seal-Less Magnetic Drive Design - Eliminates
Leakage and maintenance of mechanical seals
• Magnetic Coupling – Provides overload
protection
• Constructed Of Corrosion Resistant Materials –
Provides ability to handle corrosive fluids
|
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
2CP-MD
|
5
|
13
|
130
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
EX, PP, CE, NE, VT, 6S
|
1/35
|
3200
|
115
|
1
|
50/60
|
SUB
|
5
|
5 x 5 x 7
|
|
LC-2CP-MD
|
5
|
13
|
130
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
PP, CE, VT, 6S
|
1/35
|
3200
|
115
|
1
|
50/60
|
TE/SUB
|
5
|
5 x 5 x 7
|
|

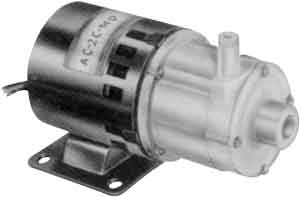

AC-2C-MD
|
5.5
|
13.5
|
190
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
PP, CE, BN, 6S
|
1/40
|
3450
|
115
|
1
|
50/60
|
AC
|
5
|
5 x 4 x 8
|
|
AC-2CP-MD
|
5
|
13
|
190
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
PP, CE, BN, 6S
|
1/40
|
3450
|
115
|
1
|
50/60
|
AC
|
5
|
5 x 4 x 8
|
|
BC-2CP-MD
|
5
|
13
|
190
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
PP, CE, VT
|
1/40
|
3450
|
115
|
1
|
50/60
|
BC
|
7
|
6 x 4 x 9
|
|
AC-2CP-MD-AM
|
6.2
|
32
|
190
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
PP, CE, VT
|
1/8
|
3950
|
AIR
|
NA
|
NA
|
AM
|
4
|
5 x 6 x 7
|
|
BC-2CP-MD-AM
|
6.2
|
32
|
190
|
100
|
1.1
|
3/8" FPT
|
1/4" FPT
|
PP, CE, VT
|
1/8
|
3950
|
AIR
|
NA
|
NA
|
AM
|
4
|
5 x 6 x 7
|
|
3CP-MD
|
8.5
|
19
|
130
|
100
|
1.1
|
3/4" FPT
|
1/2" FPT
|
DE, BR, 6S, BN, EX, CE, NE
|
1/20
|
3200
|
115
|
1
|
60
|
SUB
|
9
|
5 x 5 x 8
|
|
LC-3CP-MD
|
8.5
|
19
|
130
|
100
|
1.1
|
3/4" FPT
|
1/2" FPT
|
DE, BR, 6S, BN, CE, NE
|
1/20
|
3200
|
115
|
1
|
60
|
TE/SUB
|
9
|
5 x 5 x 8
|
|
AC-3C-MD
|
10
|
20.5
|
190
|
100
|
1.1
|
3/4" FPT
|
1/2" FPT
|
PP, CE, BN
|
1/14
|
3450
|
115
|
1
|
50/60
|
AC
|
7
|
5 x 4x 10
|
|
BC-3C-MD
|
10
|
20.5
|
190
|
100
|
1.1
|
3/4" FPT
|
1/2" FPT
|
PP, CE, VT,
|
1/15
|
3450
|
115
|
1
|
50/60
|
BC
|
8
|
5 x 4 x 10
|
|
AC-3C-MD-AM
|
10.5
|
39
|
190
|
100
|
1.1
|
3/4" FPT
|
1/2" FPT
|
PP, CE, BN
|
1/8
|
3150
|
AIR
|
NA
|
NA
|
AM
|
5
|
6 x 5 x 8
|
|
BC-3C-MD-AM
|
10.5
|
39
|
190
|
100
|
1.1
|
3/4" FPT
|
1/2" FPT
|
PP, CE, VT
|
1/8
|
3150
|
AIR
|
NA
|
NA
|
AM
|
5
|
6 x 5 x 8
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
