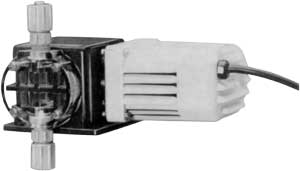

CHEM-TECH Mechanically Actuated Diaphragm
Metering Pumps are designed for use in domestic,
commercial, OEM, and general industrial applications.
It’s low cost design has been engineered for long life
operation and simple maintence. The pumps are
provided with dial adjustment controlling stroke
length for repeatable accuracy over a 10-1 range

• Constructed of Corrosion Resistant Materials -
Allows handling of various corrosive chemicals

• Metal Reinforced Short Stroke Diaphragm
-
Extra long life

• Heavy-Duty Fan Cooled Motor – Extends life and
increases efficiency

• Strong Chemically Resistant, Flame Retardant
Housing
- Withstands corrosive environments


Series 100

Series 200


SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Wetted**
Materials
MOTOR DATA
Shp.
Wt.
Lbs
Inlet
Outlet
HP
RPM
Volts
PH
Hz
Encl
003
3
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
7
115
1
60
0.3
8
4 x 8 x 9
003-P/T
3
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
7
115
1
60
0.3
8
4 x 8 x 9
007
7
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
13
115
1
60
0.42
8
4 x 8 x 9
007-P/T
7
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
13
115
1
60
0.42
8
4 x 8 x 9
015
15
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
25
115
1
60
0.59
8
4 x 8 x 9
015-P/T
15
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
25
115
1
60
0.59
8
4 x 8 x 9
024
24
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
51
115
1
60
0.75
8
4 x 8 x 9
024-P/T
24
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
51
115
1
60
0.75
8
4 x 8 x 9
030
30
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
51
115
1
60
0.79
8
4 x 8 x 9
030-P/T
30
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
51
115
1
60
0.79
8
4 x 8 x 9
068
68
60
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
51
115
1
60
1
8
4 x 8 x 9
068-P/T
68
60
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
51
115
1
60
1
8
4 x 8 x 9
100
100
60
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
70
115
1
60
1
8
4 x 8 x 9
100-P/T
100
60
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
70
115
1
60
1
8
4 x 8 x 9
210
10
150
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
22
115
1
60
1.7
17
6 x 8 x 9
210-P/T
10
150
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
22
115
1
60
1.7
17
6 x 8 x 9
215
15
150
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
22
115
1
60
1.7
17
6 x 8 x 9
215-P/T
15
150
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
22
115
1
60
1.7
17
6 x 8 x 9
220
20
150
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
44
115
1
60
1.7
17
6 x 8 x 9
200-P/T
20
150
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
44
115
1
60
1.7
17
6 x 8 x 9
230
30
125
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
44
115
1
60
1.7
17
6 x 8 x 9
230-P/T
30
125
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
44
115
1
60
1.7
17
6 x 8 x 9
240
40
125
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
44
115
1
60
1.7
17
6 x 8 x 9
240-P/T
40
125
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
44
115
1
60
1.7
17
6 x 8 x 9
260
60
125
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
44
115
1
60
1.7
17
6 x 8 x 9
260-PT
60
125
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
44
115
1
60
1.7
17
6 x 8 x 9
280
80
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
44
115
1
60
1.7
17
6 x 8 x 9
280-P/T
80
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
44
115
1
60
1.7
17
6 x 8 x 9
2-100
100
100
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
88
115
1
60
1.7
17
6 x 8 x 9
2-100-P/T
100
100
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
88
115
1
60
1.7
17
6 x 8 x 9
2-120
120
80
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
88
115
1
60
1.7
17
6 x 8 x 9
120-P/T
120
80
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
88
115
1
60
1.7
17
6 x 8 x 9
253
76.8
225
125
500
N/A
5/16" TUBE
3/8" TUBE
AC, HY, TF, CE, PV
88
115/230
1
60
1
21
8 x 10 x 16
254
108
160
125
500
N/A
5/16" TUBE
3/8" TUBE
PV, TF, VT, CE
88
115/230
1
60
1
21
8 x 10 x 16

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
