5-HR35A


X-11-TN33-E

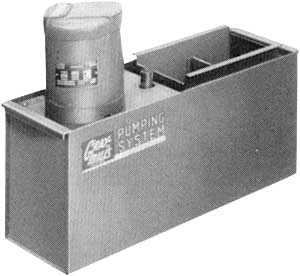

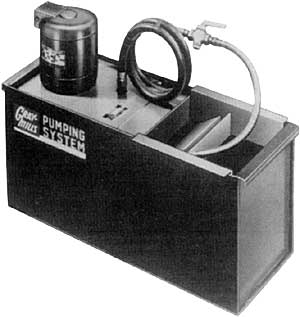

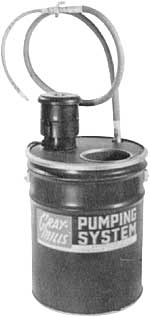

GRAYMILLS Pump/Tank coolant systems are designed for
general industrial applications. They offer a wide variety of
products to fit your machine tool requirements. Units can be
used on lathes, multiple spindle bar machines, boring machines,
abrasive finishing and cut-off machines. Systems utilize the
standard GRAYMILLS Seal-less Immersible Pumps. Both six
and eleven gallon units include chip baskets and discharge
hoses with flexible nozzle and valve. Larger units include
chip collector trays.

• Tank Units from 6 to 110 Gallons — Flexible for many applications

• Heavy Duty Construction
– Long life

• Removable Chip Basket – Easy cleaning and maintenance

• Baffled Tanks – Sludge and other solids drop out as fluid circulates

Performance curves can be found on page 61 in the Vertical
Centrifugal Pump Section.


11-HR45-A


X21-TN41-E


SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Tank
Size
Gals.
Wetted**
Materials
MOTOR DATA
Shp.
Wt.
Lbs
Overall
Dimensions
In.
Inlet
Outlet
HP
RPM
Volts
PH
Hz
Encl
3GV6-9
50
42
225
1500
1.1
2" FPT
1 1/4" FPT
9
CB,CE,BN,CI,BR,3S
1/3
3450
115/230
1
60
ODP
160
17 x 21 x 25
33GV6-9
50
42
225
1500
1.1
2" FPT
1 1/4" FPT
9
CB,CE,BN,CI,BR,3S
1/3
3450
230/460
3
60
ODP
160
17 x 21 x 25
5GV6-9
56
53
225
1500
1.1
2" FPT
1 1/4" FPT
9
CB,CE,BN,CI,BR,3S
1/2
3450
115/230
1
60
ODP
164
17 x 21 x 25
35GV6-9
56
53
225
1500
1.1
2" FPT
1 1/4" FPT
9
CB,CE,BN,CI,BR,3S
1/2
3450
230/460
3
60
ODP
164
17 x 21 x 25

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
