LITTLE GIANT Submersible Sump, Effluent and Sewage Pumps are designed for use in residential, commercial, and general industrial applications. They are ideal for dewatering, effluent waste, water and sewage handling. The standard Cast Iron housings and volutes are coated with a protective epoxy for corrosion and rust resistance. The automatic effluent pumps utilize a mercury float switch and will handle solids up to 3/4”
diameter. The automatic sewage pumps also use a mercury float switch and will pass solids up to 2” diameters.

• Rugged Cast Iron or Bronze Construction
- Provides extended pump life and low maintenance

• Thermally Protected Motors
– Protects pump from damage due to blockage

• Non-Clog Impeller
– Prevents pumps blockage

• UL Listed and CSA Approved – assures high standard
of Quality

• 6-CIA Through 12-CBA – Sump Pumps

• 8E-CIA Through 16EH-CIA
– Effluent Pumps

• 9S-CIA-RFS Through 16S-CIM – Sewage Pumps


9S-CIA-RFS




8E-CIA-RFS
EFFLUENT

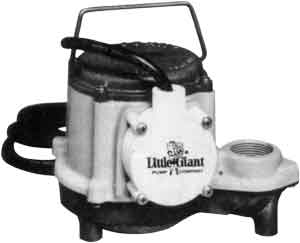

6-CIA
SEWAGE


SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Tank
Size
Gals.
Wetted**
Materials
MOTOR DATA
Shp.
Wt.
Lbs
Inlet
Outlet
HP
RPM
Volts
PH
Hz
Encl
6-CIA
46
18
125
1500
1.1
1 1/2" FPT
CI, PP, 3S, CB, BN, CE
1 1/4
1500
115
1
60
SUB
19
6 x 10 x 9
8-CIA
54
22
125
1500
1.1
1 1/2" FPT
CI, PP, 3S, CB, BN, CE
4/10
1500
115
1
60
SUB
19
6 x 10 x 9
10-CIA
70
23
125
1500
1.1
1 1/2" FPT
CI, PI, 3S, CB, BN, CE
1/2
1500
115
1
60
SUB
38
11 x 10 x 10
12-CBA
83
26
125
1500
1.1
1 1/2" FPT
BR, 3S, BN, CB, CE
1/2
1500
115
1
60
SUB
39
11 x 10 x 10
8E-CIA-RFS
52
21
125
1500
1.1
1 1/2" FPT
CI, NY, 3S, BN, CB, CE
1/3
1500
115
1
60
SUB
29
9 x 10 x 7
9E-CIA-RFS
57
23
125
1500
1.1
1 1/2" FPT
CI, NY, 3S, BN, CB, CE
4/10
1500
115
1
60
SUB
33
9 x 10 x 7
10E-CIA-RFS
80
26
125
1500
1.1
1 1/2" FPT
CI, NY, 3S, BN, CB, CE
1/2
1500
115
1
60
SUB
44
11 x 10 x 9
16EH-CIM +
70
81
125
1500
1.1
2" FPT
CI, 3S, BN, CB, CE
1
1500
230
1
60
SUB
82
17 x 14 x 10
9S-CIA-RFS
80
19
125
1500
1.1
2" FPT
CI, NY, 3S, BN, CB, CE
4/10
1500
115
1
60
SUB
36
11 x 11 x 7
10S-CIA-RFS
110
22
125
1500
1.1
2" FPT
CI, NY, 3S, BN, CB, CE
1/2
1500
115
1
60
SUB
48
13 x 11 x 9
16S-CIM +
160
35
125
1500
1.1
3" FPT
CI, 3S, BN, CB, CE
1
1500
230
1
60
SUB
88
18 x 14 x 10

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
