• Heavy Duty Cast Iron Construction - Provides long service life

• Self-lubricating Oiltite Bearing – Reduces maintenance costs

• Optional 316 Stainless Steel Construction - Allows handling of
corrosive chemicals

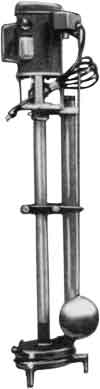

These heavy duty vertical sump pumps are designed for use in general industrial and chemical applications. Standard materials of construction are Bronze Fitted Cast Iron. Optional materials available are all Iron and 316 Stainless Steel. Automatic operation is controlled by means of a Stainless steel float switch assembly. Pumps
are available with immersion depth up to 20 feet. A 20 inch diameter sump cover and discharge pipe assembly are included with each pump.

SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Tank
Size
Gals.
Wetted**
Materials
MOTOR DATA
Shp.
Wt.
Lbs
Overall
Dimensions
In.
Inlet
Outlet
HP
RPM
Volts
PH
Hz
Encl
300
48
27
200
1500
1.1
1 1/2" FPT
24
CB, CE, BN, CI, BR, 3S
1/3
1750
115/230
1
60
TEFC
102
20 x 20 x 49
300
48
27
200
1500
1.1
1 1/2" FPT
24
CB, CE, BN, CI, BR, 3S
1/3
1750
230/460
3
60
TEFC
102
20 x 20 x 49
300
48
27
200
1500
1.1
1 1/2" FPT
24
CB, CE, BN, CI, BR, 3S
1/3
1750
115/230
1
60
XP
117
20 x 20 x 49
300
48
27
200
1500
1.1
1 1/2" FPT
24
CB, CE, BN, CI, BR, 3S
1/3
1750
230/460
3
60
XP
117
20 x 20 x 49
500
68
32
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1/2
1750
115/230
1
60
TEFC
101
20 x 20 x 49
500
68
32
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1/2
1750
230/460
3
60
TEFC
101
20 x 20 x 49
500
68
32
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1/2
1750
115/230
1
60
XP
123
20 x 20 x 49
500
68
32
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1/2
1750
230/460
3
60
XP
123
20 x 20 x 49
500
95
36
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
3/4
1750
115/230
1
60
TEFC
102
20 x 20 x 49
500
95
36
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
3/4
1750
230/460
3
60
TEFC
102
20 x 20 x 49
500
95
36
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
3/4
1750
115/230
1
60
XP
124
20 x 20 x 49
500
95
36
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
3/4
1750
230/460
3
60
XP
124
20 x 20 x 49
500
90
45
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1
1750
115/230
1
60
TEFC
108
20 x 20 x 49
500
90
45
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1
1750
230/460
3
60
TEFC
108
20 x 20 x 49
500
90
45
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1
1750
115/230
1
60
XP
128
20 x 20 x 49
500
90
45
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1
1750
230/460
3
60
XP
128
20 x 20 x 49
500
120
48
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1 1/2
1750
115/230
1
60
TEFC
122
20 x 20 x 49
500
120
48
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1 1/2
1750
230/460
3
60
TEFC
122
20 x 20 x 49
500
120
48
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1 1/2
1750
115/230
1
60
XP
144
20 x 20 x 49
500
120
48
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
1 1/2
1750
230/460
3
60
XP
144
20 x 20 x 49
500
155
52
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
2
1750
115/230
1
60
TEFC
145
20 x 20 x 49
500
155
52
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
2
1750
230/460
3
60
TEFC
145
20 x 20 x 49
500
155
52
200
1500
1.1
2" FPT
24
CB, CE, BN, CI, BR, 3S
2
1750
115/230
1
60
XP
160
20 x 20 x 49
500
155
52
200
1500
1.1
2" FPT
224
CB, CE, BN, CI, BR, 3S
2
1750
230/460
3
60
XP
160
20 x 20 x 49

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
