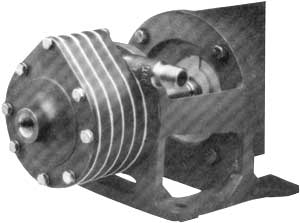

EASTERN Centrichem Multi-stage Centrifugal Pumps are
designed for general industrial, OEM, and chemical processing applications
where high pressures are required for handling corrosive chemicals.
These units are available with single/double, type 21 and type 9 mechanical
seals in a wide variety of materials. A power frame assembly is available
for pedestal mounting the H series . These pumps are ideal for use in
process, pilot plant, and laboratory applications.
• Available in 316 Stainless Steel and Alloy C (H series only)
construction - Handles a wide range of chemicals
• Standard NEMA C flange bracket
- Adapts to various types of drives including air and explosion proof
motors
• Standard mechanical seals
– Handles a wide range of application requirements (i.e.corrosive,
high temperatures, and abrasives)
• Close coupled design - Compact, requires less space
|
|
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|

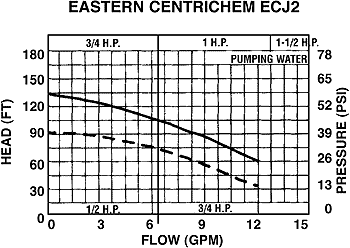

ECJ2-ASACCYSS
|
16
|
130
|
250
|
500
|
1.1
|
1/2" FPT
|
1/2" MPT
|
6S, CB, VT, CE, TF
|
1
|
3450
|
115/230
|
1
|
60
|
TEFC
|
61
|
19 X 7 X 8
|
|
ECJ2-ASACCYSS
|
16
|
130
|
250
|
500
|
1.1
|
1/2" FPT
|
1/2" MPT
|
6S, CB, VT, CE, TF
|
1
|
3450
|
230/460
|
3
|
60
|
TEFC
|
45
|
19 X 7 X 8
|
|

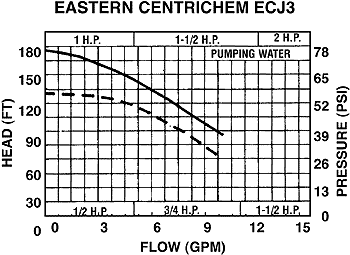

ECJ3-ASACCYSS
|
15
|
175
|
250
|
500
|
1.1
|
1/2" FPT
|
1/2" MPT
|
6S, CB, VT, CE, TF
|
1 1/2
|
3450
|
115/230
|
1
|
60
|
TEFC
|
56
|
21 X 7 X 8
|
|
ECJ3-ASACCYSS
|
15
|
175
|
250
|
500
|
1.1
|
1/2" FPT
|
1/2" MPT
|
6S, CB, VT, CE, TF
|
1 1/2
|
3450
|
230/460
|
3
|
60
|
TEFC
|
56
|
21 X 7 X 8
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
