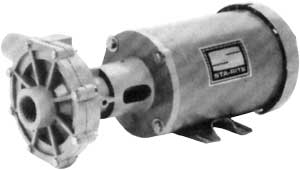

The Webster (Flotec) C5, C7, C8 and C10 Series Non-metallic
Centrifugal Pumps are designed for continuous chemical duty service
and general industrial applications. The units are precision modeled
of CPVC, Polypropylene or PVDF and feature a rugged construction designed
for long, trouble-free service. Single and double mechanical seals in
a wide range of materials are available. Pedestal mount assembly is
also available.
Available in CPVC, Polypropylene or PVDF
Handles a wide variety of chemicals
No metal parts in contact with fluids
Handles virtually all corrosive fluids
Close Coupled Design
Compact; requires less space
Standard NEMA C Flange Bracket
Allows use of a wide range of drives including air and explosion
proof motors
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
C5P8-1164SV
|
34
|
31
|
180
|
500
|
1.1
|
3/4" FPT
|
1/2" FPT
|
CP, VT, CB, CE
|
1/3
|
3450
|
115/230
|
1
|
60
|
TENV
|
31
|
17x8x9
|
C5P8-1194SV
|
34
|
31
|
180
|
500
|
1.1
|
3/4" FPT
|
1/2" FPT
|
CP, VT, CB, CE
|
1/3
|
3450
|
208/230/460
|
3
|
60
|
TENV
|
25
|
16x8x9
|
C7P8-1164SV
|
61
|
55
|
180
|
500
|
1.1
|
1" FPT
|
3/4" FPT
|
CP, VT, CB, CE
|
1
|
3450
|
115/230
|
1
|
60
|
TEFC
|
36
|
18x9x9
|
C7P8-1194SV
|
61
|
55
|
180
|
500
|
1.1
|
1" FPT
|
3/4" FPT
|
CP, VT, CB, CE
|
1
|
3450
|
208/230/460
|
3
|
60
|
TEFC
|
33
|
18x9x9
|
C8P8-1164SV
|
85
|
70
|
180
|
500
|
1.1
|
1 1/4" FPT
|
1" FPT
|
CP, VT, CB, CE
|
1 1/2
|
3450
|
115/230
|
1
|
60
|
TEFC
|
41
|
18x9x9
|
C8P8-1194SV
|
85
|
70
|
180
|
500
|
1.1
|
1 1/4" FPT
|
1" FPT
|
CP, VT, CB, CE
|
1 1/2
|
3450
|
208/230/460
|
3
|
60
|
TEFC
|
47
|
17x9x9
|
C10P3-1194SV
|
100
|
110
|
180
|
500
|
1.1
|
1 1/2" FPT
|
1" MPT
|
PP, CB, CE, VT
|
3
|
3450
|
230/460
|
3
|
60
|
TEFC
|
60
|
20x8x9
|
5-C10P3-1194SV
|
125
|
145
|
180
|
500
|
1.1
|
1 1/2" FPT
|
1" MPT
|
PP, CB, CE, VT
|
5
|
3450
|
230/460
|
3
|
60
|
TEFC
|
74
|
24x10x10
|
C5P8-3100SV
|
34
|
31
|
180
|
500
|
1.1
|
3/4" FPT
|
1/2" FPT
|
CP, VT, CB, CE
|
Call for information on motor and
mounting components available
for use on pedestal mount pumps.
|
13
|
14x7x9
|
C7P8-3100SV
|
61
|
55
|
180
|
500
|
1.1
|
1" FPT
|
3/4" FPT
|
CP, VT, CB, CE
|
13
|
14x9x7
|
C8P8-3100SV
|
85
|
70
|
180
|
500
|
1.1
|
1 1/4" FPT
|
1" FPT
|
CP, VT, CB, CE
|
13
|
14x9x7
|
C10P3-3100SV
|
100
|
150
|
180
|
500
|
1.1
|
1 1/2" FPT
|
1" MPT
|
PP, CB, CE, TF
|
30
|
14x8x10
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
