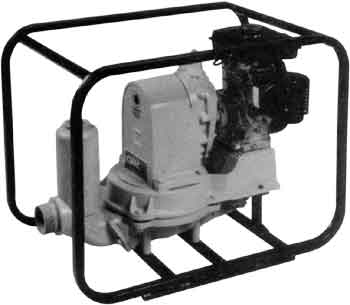

CH&E Diaphragm pumps are designed for rugged service in general industrial water and waste handling applications. They offer high flow rates and suction lifts for dewatering and emptying of septic, marina, and industrial waste tanks. Both lightweight Aluminum and abrasion-resistance cast Iron constructions are available. Standard Natural Rubber diaphragms and flap valves can be replaced with Neoprene, Buna-N or Viton. The straight flow through design provides self-cleaning of the large opening flapper valves and diaphragm housing. In addition, a suction air chamber cushions the pump stroke. Each pump is available with the
protective tubular frame or with 8” rubber tired wheels.

• Constructed of Heavy-Duty Aluminum or cast Iron Wetted ends -
Provides long service life

• Precision - Manufactured, Oil-Lubricated, Enclosed Gears -
Reduce maintenance costs and extend product life

• Self Priming Design
– Fast, trouble free start-up and operation

• Optional Diaphragm and valve Materials - Allows handling of a
variety of waste products and chemicals

• Tubular Frame Roll-Over cage
- Protects pumps from damage and aids in portability

• Self-Cleaning Design - Allows handling of solids without clogging




SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
CPS
Max.
Spec
Grav.
Connections
Wetted**
Materials
Stroke Rate SPM
ENGINE DATA
Shp.
Wt.
Lbs.
Overall
Dimensions
In.
Inlet
Outlet
HP
Displ.CU. IN.
Fuel Cap Gal.

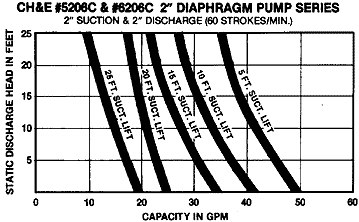

5206C
50
25
180
5,000
1.2
2" mpt
2" mpt
AL, RB
60
3.5
8.73
0.4
146
26 x 26 x 35
6206C
50
25
180
5,000
1.2
2" mpt
2" mpt
CI, RB
60
3.5
8.73
0.4
174
26 x 26 x 35

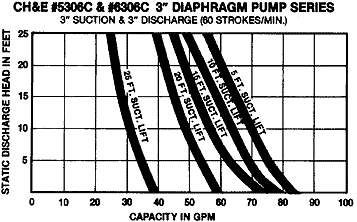

5306C
85
25
180
5,000
1.2
3" mpt
3" mpt
AL, RB
60
3.5
8.73
0.4
166
26 x 26 x 35
6306C
85
25
180
5,000
1.2
3" mpt
3" mpt
CI, RB
60
3.5
8.73
0.4
216
26 x 26 x 35

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
