SC Series:

• Seal-Less Magnetic Drive Design - Eliminates leakage and maintenance due to mechanical seals and packing

• Constructed of Corrosion-Resistant Materials
– Handles semi-corrosive fluids

• Motors are UL listed and Components are NSF and
CSA Certified – (except MD-CK)
– Assures high quality

• Magnetic Coupling - Provides overload protection

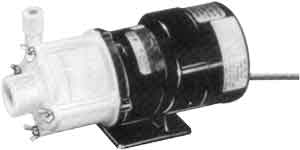

3-MD-SC

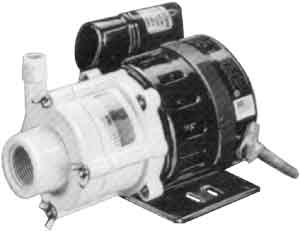

5-MD-SC

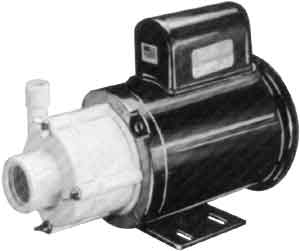

TE-5-MD-SC

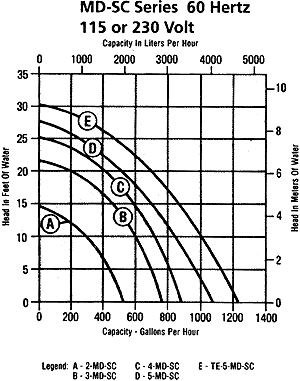

SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Wetted**
Materials
MOTOR DATA
Shp.
Wt.
Lbs
Overall
Dimensions
In.
Inlet
Outlet
HP
RPM
Volts
PH
Hz
Encl
2-MD-SC
8.5
14.6
150
100
1.1
1/2" FPT
1/2" MPT
PP, BN, CE
1/25
2900
115
1
60
OFC
7
5 x 4 x 8
2-MD-SC-230V
8.5
14.6
150
100
1.1
1/2" FPT
1/2" MPT
PP, BN, CE
1/25
2900
230
1
60
OFC
7
5 x 4 x 8
3-MD-SC
12.5
21.9
150
100
1.1
3/4" FPT
1/2" MPT
PP, BN, CE
1/12
3100
115
1
60
OFC
7.7
5 x 4 x 10
3-MD-SC-230V
12.5
21.9
150
100
1.1
3/4" FPT
1/2" MPT
PP, BN, CE
1/12
3100
230
1
60
OFC
7.7
5 x 4 x 10
4-MD-SC
14.2
24.3
150
100
1.1
1" FPT
1/2" MPT
PP, BN, CE
1/10
3000
115
1
60
OFC
7.7
5 x 6 x 10
TE-4-MD-SC
14.2
24.3
150
100
1.1
1" FPT
1/2" MPT
PP, BN, CE
1/10
3000
230
1
60
TEFC
7.7
5 x 6 x 10
5-MD-SC
11.9
27.5
150
100
1.1
1" FPT
1/2" MPT
PP, BN, CE
1/8
3000
115
1
60
OFC
8.7
6 x 6 x 9
5-MD-SC-230V
11.9
27.5
150
100
1.1
1" FPT
1/2" MPT
PP, BN, CE
1/8
3000
230
1
60
OFC
8.7
6 x 6 x 9
TE-5-MD-SC
20
29.3
150
100
1.1
1" FPT
1/2" MPT
PP, BN, CE
1/8
3450
115/230
1
60
TEFC
17.2
8 x 6 x 12

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
