MD-HC Series:


4-MDHC

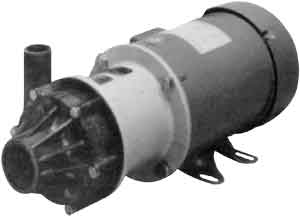

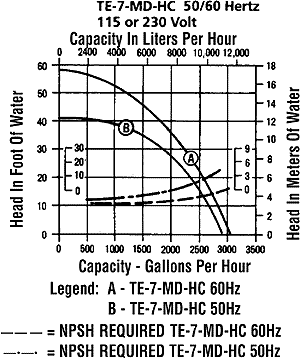

TE-7-MD-HC

MC-HC/MD-CK series:

• Seal-Less Magnetic Drive Design
- Eliminates leakage and
maintenance due to mechanical seals and packing

• Carbon Bearing (MD-HC Series Only)
– Allows for dry run
capabilities up to 8 hours

• Constructed of Corrosion-Resistant Materials – Handles highly semi-corrosive fluids

• Motors are UL listed and Components are NSF and CSA
Certified
– ( MD-HC Series Only) – Assures high quality

• Magnetic Coupling - Provides overload protection




SPECIFICATIONS TABLE

Model
Max.
Flow
GPM
Max.
Head
FT
Max.
Temp
°F
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Wetted**
Materials
MOTOR DATA
Shp.
Wt.
Lbs
Overall
Dimensions
In.
Inlet
Outlet
HP
RPM
Volts
PH
Hz
Encl
2-MD-HC
8.5
14.6
200
100
1.1
1/2" FPT
1/2" MPT
RY, CE, CB, VT
1/30
3100
115
1
60
OFC
4
5 x 4 x 9
2-MD-HC-230V
8.5
14.6
200
100
1.1
1/2" FPT
1/2" MPT
RY, CE, CB, VT
1/30
3100
230
1
60
OFC
4
5 x 4 x 9
3-MD-HC
12.5
21.9
200
100
1.1
3/4" FPT
1/2" MPT
RY, CE, CB, VT
1/12
3100
115
1
60
OFC
7.7
5 x 4 x 10
3-MD-HC-230V
12.5
21.9
200
100
1.1
3/4" FPT
1/2" MPT
RY, CE, CB, VT
1/12
3100
230
1
60
OFC
7.7
5 x 4 x 10
3-MD-MT-HC
8.3
16.2
200
100
1.1
1/2" MPT
1/2" MPT
RY, CE, CB, VT
1/25
3100
115
1
60
OFC
7.2
6 x 4 x 8
TE-3-MD-HC
9.8
16.3
200
100
1.1
1/2" FPT
1/2" MPT
RY, CE, CB, VT
1/25
3100
115
1
60
TEFC
7.7
5 x 4 x 10
TE-3-MD-HC-230V
9.8
16.3
200
100
1.1
1/2" FPT
1/2" MPT
RY, CE, CB, VT
1/25
3100
230
1
60
TEFC
7.7
5 x 4 x 10
4-MD-HC
14.2
24.3
200
100
1.1
1" FPT
1/2" MPT
RY, CE, CB, VT
1/10
3000
115
1
60
OFC
7.7
5 x 6 x 10
TE-4-MD-HC
14.2
24.3
200
100
1.1
1" FPT
1/2" MPT
RY, CE, CB, VT
1/10
3000
115
1
60
TEFC
7.7
5 x 6 x 11
TE-4-MD-HC-230V
14.2
24.3
200
100
1.1
1" FPT
1/2" MPT
RY, CE, CB, VT
1/10
3000
230
1
60
TEFC
7.7
5 x 6 x 11
5-MD-HC
17.5
27.5
200
100
1.1
1" FPT
1/2" MPT
RY, CE, CB, VT
1/8
3000
115
1
60
OFC
8.7
6 x 6 x 9
5-MD-HC-230V
17.5
27.5
200
100
1.1
1" FPT
1/2" MPT
RY, CE, CB, VT
1/8
3000
230
1
60
OFC
8.7
6 x 6 x 9
TE-5-MD-HC
26
29.3
200
100
1.1
1" FPT
1/2" MPT
RY, CE, CB, VT
1/8
3450
115/230
1
60
TEFC
17.2
6 x 8 x 12
TE-7-MD-HC
53
58.9
200
100
1.1
1 1/2" FPT
1" MPT
RY, CE, CB, VT
3/4
3400
115/230
1
60
TEFC
50
8 x 9 x 18
TE-7-MD-HC-30
53
58.9
200
100
1.1
1 1/2" FPT
1" MPT
RY, CE, CB, VT
3/4
3400
230/460
3
60
TEFC
50
8 x 9 x 18
EP-7-MD-HC
53
58.9
200
100
1.1
1 1/2" FPT
1" MPT
RY, CE, CB, VT
3/4
3400
115/230
1
60
EXP
50
8 x 9 x 18
EP-7-MD-HC-30
53
58.9
200
100
1.1
1 1/2" FPT
1" MPT
RY, CE, CB, VT
3/4
3400
230/460
3
60
EXP
50
8 x 9 x 18
TE-7-MD-CK
53
58.9
200
100
1.1
1 1/2" FPT
1" MPT
KY, CH, VT, CE
3/4
3400
115/230
1
60
TEFC
50
8 x 9 x 18

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
