Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|

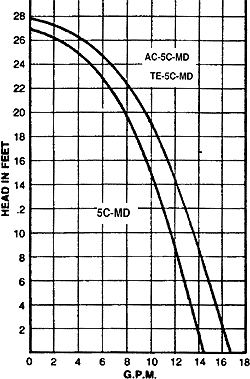

5C-MD
|
14.5
|
27
|
130
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
EX, 6S, PP, BN, CE
|
1/8
|
2800
|
115
|
1
|
60
|
SUB
|
18
|
5 x 7 x 10
|
|
AC-5C-MD
|
17
|
27
|
190
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
PP, CE, BN
|
1/8
|
3200
|
115
|
1
|
50/60
|
AC
|
10
|
5 x 7 x 10
|
|
TE-5C-MD
|
18
|
29
|
190
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
PP, RY, CE, VT
|
1/5
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
16
|
6 x 7 x 12
|
|
TE-5K-MD
|
18
|
29
|
220
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
KY, CE, VT
|
1/5
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
16
|
6 x 7 x 12
|
|
TE-5S-MD
|
18
|
29
|
250
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
6S, CE, VT, CB
|
1/5
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
18
|
6 x 7 x 12
|
|
AC-5C-MD-AM
|
16.5
|
50
|
190
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
PP, CE, VT
|
1/8
|
2900
|
AIR
|
N/A
|
N/A
|
AM
|
5
|
5 x 6 x 8
|
|
TE-5K-MD-AM
|
16.5
|
50
|
220
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
KY, CE, VT
|
1/8
|
2900
|
AIR
|
N/A
|
N/A
|
AM
|
5
|
5 x 6 x 8
|
|
TE-5S-MD-AM
|
16.5
|
50
|
250
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
6S, CE, VT, CB
|
1/8
|
2900
|
AIR
|
N/A
|
N/A
|
AM
|
8
|
5 x 6 x 8
|
|

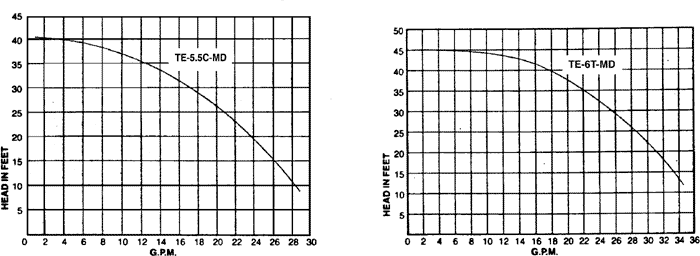

TE-5.5C-MD
|
30
|
40
|
190
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
PP, CE, VT
|
1/3
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
35
|
8 x 9 x 16
|
|
TE-5.5K-MD
|
30
|
41
|
220
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
KY, CE, VT
|
1/3
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
35
|
8 x 9 x 16
|
|
TE-5.5S-MD
|
30
|
41
|
250
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
6S, CE, VT, CB
|
1/3
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
39
|
8 x 9 x 16
|
|
DP-6T-MD
|
38
|
46
|
190
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
PP, RY, CE, VT
|
1/2
|
3450
|
115/230
|
1
|
60
|
ODP
|
26
|
9 x 9 x 16
|
|
TE-6T-MD-10
|
38
|
46
|
190
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
PP, RY, CE, VT
|
1/2
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
35
|
9 x 9 x 16
|
|
TE-6T-MD-30
|
38
|
46
|
190
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
PP, RY, CE, VT
|
1/2
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
35
|
9 x 9 x 16
|
|
TE-6K-MD-10
|
38
|
46
|
220
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
KY, CE, VT, CB
|
1/2
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
35
|
9 x 9 x 16
|
|
TE-6K-MD-30
|
38
|
46
|
220
|
100
|
1.1
|
1" FPT
|
3/4" MPT
|
KY, CE, VT, CB
|
1/2
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
35
|
9 x 9 x 16
|
| Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
