Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
TE-7R-MD-10
|
53
|
60
|
190
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
PP, RY, CE, VT, TF
|
3/4
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
39
|
9 x 9 x 19
|
|
TE-7R-MD-30
|
53
|
60
|
190
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
PP, RY, CE, VT, TF
|
3/4
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
33
|
9 x 9 x 19
|
|
TE-7K-MD-10
|
53
|
60
|
220
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
KY, CE, VT, CB
|
3/4
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
39
|
9 x 9 x 19
|
|
TE-7K-MD-30
|
53
|
60
|
220
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
KY, CT, VT, CB
|
3/4
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
33
|
9 x 9 x 19
|
|
TE-7S-MD-10
|
53
|
60
|
220
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
6S, CE, VT, CB
|
3/4
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
50
|
9 x 9 x 19
|
|
TE-7S-MD-30
|
53
|
60
|
220
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
6S, CE, VT, CB
|
3/4
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
44
|
9 x 9 x 19
|
|
TE-7H-MD-10
|
53
|
60
|
220
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
HC, CE, VT, CB
|
3/4
|
3450
|
115/230
|
1
|
50/60
|
TEFC
|
62
|
9 x 9 x 19
|
|
TE-7H-MD-30
|
53
|
60
|
220
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
HC, CE, VT, CB
|
3/4
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
56
|
9 x 9 x 19
|
|

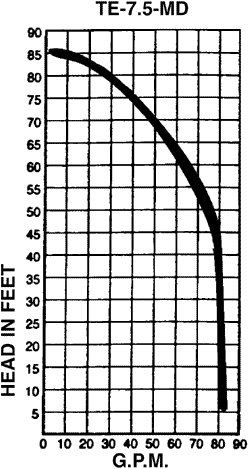

TE-7.5K-MD-30
|
82
|
85
|
220
|
100
|
1.1
|
2" MPT
|
1 1/2" FPT
|
KY, CE, VT, CB
|
2
|
3450
|
230/460
|
3
|
50/60
|
TEFC
|
70
|
9 x 10 x 20
|
|

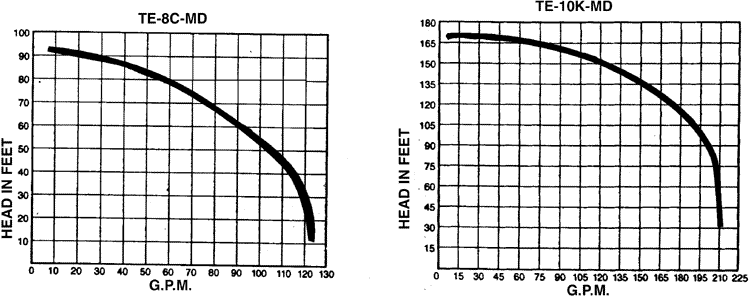

TE-8C-MD-30
|
125
|
95
|
190
|
100
|
1.1
|
2" MPT
|
1 1/2" MPT
|
PP, CE, VT, TE, RY
|
3
|
3450
|
230/460
|
3
|
60
|
TEFC
|
160
|
13 x 14 x 26
|
|
TE-8K-MD-30
|
125
|
95
|
220
|
100
|
1.1
|
2" MPT
|
1 1/2" MPT
|
KY, CE, VT, CB
|
3
|
3450
|
230/460
|
3
|
60
|
TEFC
|
160
|
13 x 14 x 26
|
|
TE-8S-MD-30
|
125
|
95
|
250
|
100
|
1.1
|
2" MPT
|
1 1/2" MPT
|
6S, VT, CE, CB
|
5
|
3450
|
230/460
|
3
|
60
|
TEFC
|
180
|
13 x 14 x 26
|
|
TE-10K-MD-30
|
210
|
170
|
220
|
100
|
1.1
|
3" MPT
|
2" MPT
|
KY, CE, VT, CB
|
10
|
3450
|
230/460
|
3
|
60
|
TEFC
|
220
|
17 x 15 x 32
|
| Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
