The following accessories are available for use with the
JABSCO DRUM PUMPS.

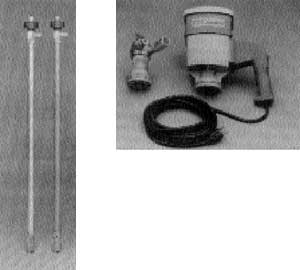

JABSCO Drum Pumps are designed to empty containers, vats, drums
and carboys in general industrial and chemical applications. The heavy duty construction and modular design allow for rough handling and low
maintenance costs. Polypropylene and 316 Stainless Steel construction in three lengths are available for handling a wide range of chemicals from strong acids and caustics to severe solvents to oils. Both electric and air motors are available for use with any tube material or size.

• Seal-less Design
- Provides 30 minute dry run capabilities

• Modular Design –Allows flexibility in pump/motor selection

• Constructed of Corrosion Resistant Materials
– Allows handling of
a wide range of corrosive chemicals

• Heavy Duty Construction – Protects pump from rough handling

PART NO.
18753-0077
18753-0080
16490-1000
16490-1001
16470-0000
16471-0000
Description
Adjustable Flow Nozzle
PVC Barrel Adapter
Polypropylene Inlet Strainer
Stainless Steel Inlet Strainer
Wall Bracket
Grounding Wire

SPECIFICATIONS TABLE

Model
HP
RPM
Volts
PH
Hz.
Encl.
Shp.
Wt.
Lbs.
Overall
Dimensions
In.
1620-0115
1/4
10,600
115
1
60
TEFC
8
5 X 5 X 11
16420-0220
1/4
10,600
220
1
50
TEFC
8
5 X 5 X 11
16440-0000
1/3
8,000
AIR MOTOR
N/A
N/A
N/A
2
2 X 6 X 6

SPECIFICATIONS TABLE

Model
Max.
Flow
Max.
Head
FT
Max.
Temp
P
Max.
Visc
SSU
Max.
Spec
Grav.
Connections
Tube
Length
In.
Wetted**
Materials
Shp.
Wt.
Lbs.
Overall
Dimensions
In.
Inlet
Outlet
16400-0270
25
70
130
3500
1.8
1" Hose
27
PP, TF, 20
3
3 x 3 x 32
16400-0350
25
70
130
3500
1.8
1" Hose
35
PP, TF, 20
3
3 x 3 x 40
16400-0470
25
70
130
3500
1.8
1" Hose
47
PP, TF, 20
4
3 x 3 x 52
16410-0270
25
70
200
3500
1.8
1" Hose
27
6S, TF
8
3 x 3 x 32
16410-0350
25
70
200
3500
1.8
1" Hose
35
6S, TF
8
3 x 3 x 40
16410-0470
25
70
200
3500
1.8
1" Hose
47
6S, TF
10
3 x 3 x 52

Other seal configurations available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.

Contact a Water Cooling Application Engineer for assistance in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
